High Quality SMT Machine Line Hanwha DECAN S2 Pick and Place Machine DECAN S2 SMT Chip Mounter Machine
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
Hanwha DECAN S2 Pick and Place Machine Technical Parameters :
Model
Decan S2
Mounting heads
2 gantries x 10 spindles (FS10)
Placement speed
92 000 cph
Accuracy
±28μm@3σ/03015 chip, ±25μm@3σ/IC
Components range
03015 ~ 12 mm (height less 10 mm)
PCB size
50х40 ~ 510х460 mm, optionally 610x460, 740х460, 810x460, 1200x460
PCB thickness
0,38 ~ 4,2 mm
Feeder capacity
120 ea 8 mm
Conveyor configuration
1-2-1 (1-2-2, 2-2-2, 2-2-1, 1-1-1 options)
Interface
SMEMA
Power supply
AC 200 / 208 / 220 / 240 / 380 / 415 В (50/60Hz, 3ph) Max. 5 kVA
Air consumption
0.5 ~ 0.7MPa (5 ~ 7 kgf/cm2), 50 Nl/min
Dimension
1430x1740x1485 mm
Weight
1800 kg
Hanwha DECAN S2 Pick and Place Machine Details:

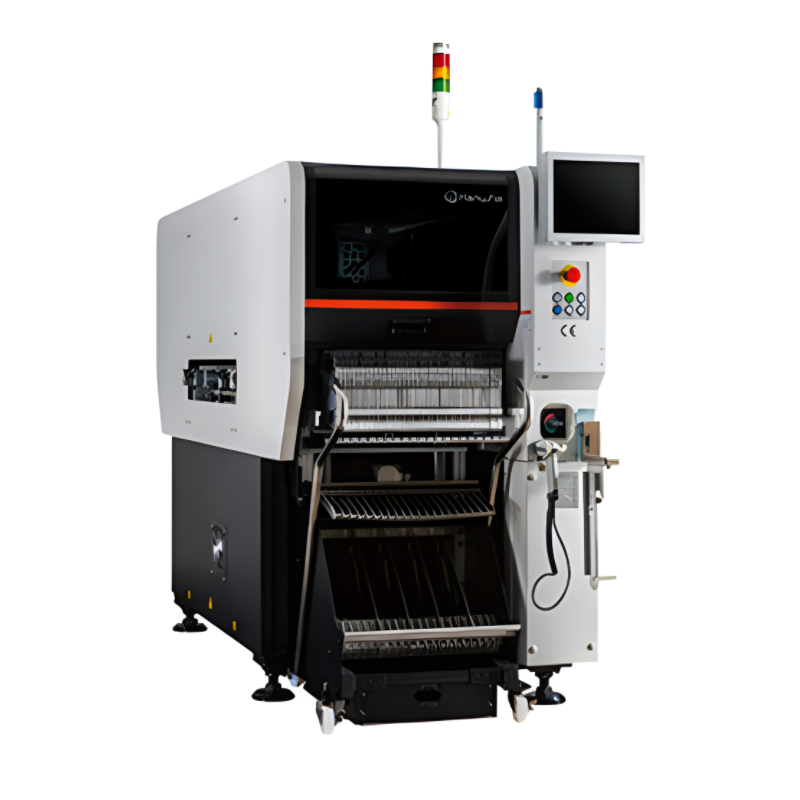

Hanwha Decan S2 SMT Pick And Place Machine
HIGH PRODUCTIVITY
Optimizing PCB transportation paths for productivity improvement
Modular Conveyors
■ An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.
■ PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed
Twin Servo Control
■ Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head
■ Minimized head movement path through recognizing parts during transportation following parts installation
■ 10-spindle head with individually operating Z axes
HIGH RELIABILITY
Placement Accuracy: ±28㎛ (03015), ±25㎛ (IC)
■ Applied with a high-precision linear scale and rigid mechanism.
■ Provides precision calibration algorithms and diverse automatic calibration functions.
FLEXIBLE LINE SOLUTION
Provides optimal line solutions through versatility and productivity improvement
DECAN Line
■ Optimal line configuration from chips to uniquely-shaped components according to options setup
Equipment capable of responding to large-scale PCBs, which can be remodeled on site
■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling
– Responsive to a maximum 1,200 x 460mm PCB
Responsive to uniquely-shaped components (including tray components)
EASY OPERATION
Strengthened equipment software operation convenience
■ Convenient production and editing of work programs with built-in equipment optimization software
■ Provision of a range of work data and information on a large-scale LCD screen
High-precision, convenient electric feeder
■ Calibration and maintenance-free electric feeder
■ Improved work convenience with a single reel bank mounted feeder
■ Improved productivity through the provision of automatic parts pick-up position alignment between feeders
Reduced work load through parts connection automation (smart feeder)
■ Automatic loading and splicing capabilities implemented as an industry first
– Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually
■ Zero consumables costs for parts connection attained
