SMT Placement Solution Smd Mounting Machine Hanwha SM485 Pick and Place Machine Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
Hanwha SM485 Pick and Place Machine Technical Parameters :
Modle Name
SM485
ltem
Specifications
Spindle / Gantry
4+ 1 Spindles / 1 Gantry
Speed
22000 CPH
Accuracy
±40um @u+30( Chip) ±30um @u+3o (IC)
Component Range
0402~ 21mm (H 15mm) – Fliying Vision
~55mm(H 26mm)L150mm x 25mm
Force Control
0.5~50N
PCB size
460x 400 (Standard), 740 x.460(Max)
PCB weight
Max. 3Kg
Feeder Capacity(Based on 8mm)
120 Slots (Docking Cart : 112 Slots)
Utility
3 Phase AC 200/208/220/240/380/415V±10%(50/60Hz), Max. 3.5 KVA – Power
5o Nl/min (Vacuum Pump)- Air
Weight
Approx. 1,600 kg
External Dimension
1,650(L)x 1,680(D)x 1,530(H)mm
Hanwha SM485 Pick and Place Machine Details:
The SM485 is a high precision multi-functional placement system equipped with four high speed flexible heads and one high precision force control head. The SM485 is a good mixture between the flagship SM482 and the sucessful SM451 Odd Form machine. So the SM485 has great flexibility and speed too.
Odd-shaped parts from 01005 fine chips to 150mm long long connectors, bare chips and PIP insert parts. In addition, it also allows placement of special parts by providing gripper nozzles and supports parts with height of up to 26mm. POP, lead lift-off check, rear side reflection recognition and Component value checking are optional adding even more functionality.
Features:
- Gripper Nozzles for Connectors
- Laser light for aligning pin and can shield components
- Force Control Z-Axis of precision head
- Through Hole Component Placement
- Connector Placement
- 0201 component recognition as standard
- 120 x 8mm Feeder Capacity
- High Accuracy ±30µ@3σ/QFP, ±40µ@3σ/Chip
- Small Footprint of just 1650mm x 1690mm x 1485mm
- 4.7KVA Max Power
Options:
- Lifted Lead Check Sensor
- Board Height sensor
- Component Value Verifier (LCR Checker)
- Intelligent Feeders
- Multi Tray Feeders
- SMART Feeders (Cut Strips)
- Radial Feeder
- Bowl Feeder

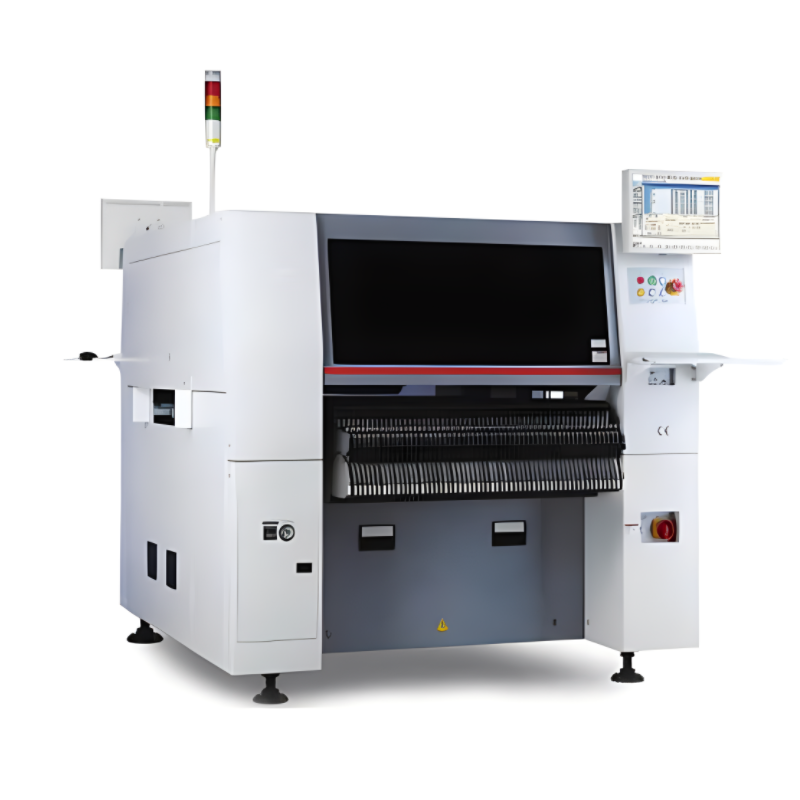

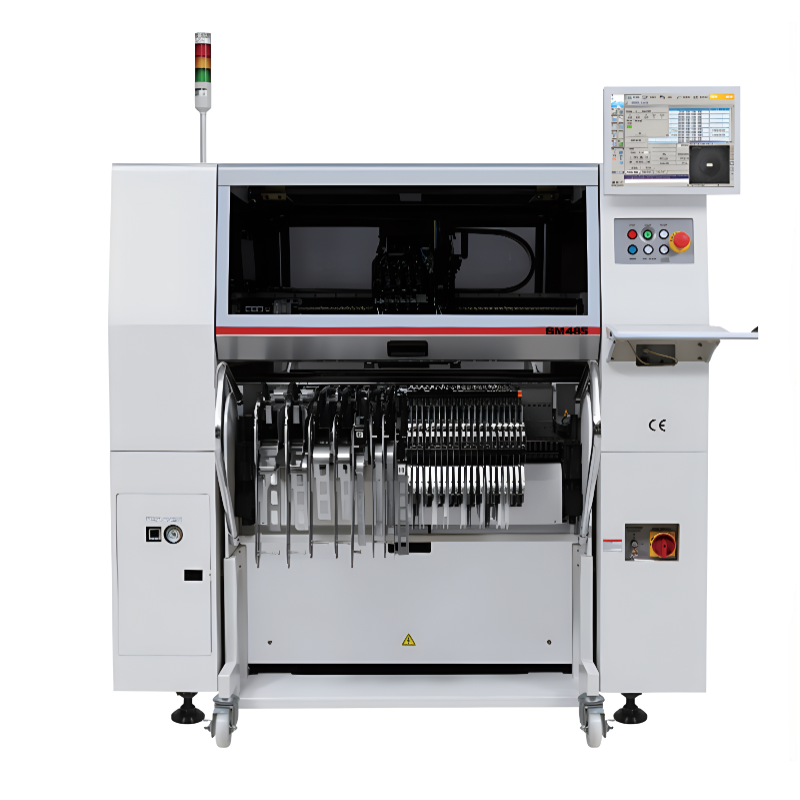

Hanwha SM485 Pick and Place Machine Picture Show:
