SMT Placement Solution Smd Mounting Machine Hanwha SM471 Pick and Place Machine Led Pick and Place Machine For SMT Assembly Line SMT Machine Line
Whatsapp:+8613728632793, skype:Joaquin Xie,wechat:Joaquin15
Whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.Meraif's Customer In 35 Countries Around the World
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
Hanwha SM471 Plus Pick and Place Machine Technical Parameters :
Model
SM471 PLUS
Vision
Flying Vision
Numbers of Heads
10 Heads x 2 Gantry (20 Heads Total)
Placement Speed
78,000 CPH (Optimal)
Placement Accuracy
Chip
±40μm@μ+3σ (Based on standard chip)
QFP
±30μm@μ+3σ (Based on standard chip)
Components
Chip 0402 (01005) ~ 14mm (H 12mm)
IC, Connector (Lead Pitch 0.4mm)
BGA, CSP (Ball Pitch 0.4mm)
PCB Dimension (mm)
Min.
50(L)x40(W)
Max.
Single Lane
510(L) x 460(W)
610(L) x 460(W) (Option)
Max.
Dual Lane
460(L) x 250(W)
610(L) x 250(W) (Option)
PCB Thickness (mm)
0.38 - 4.2
Feeder Capacity (Based on 8mm)
120ea/112ea (Docking cart)
Utility
Power
AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)
Max. 5.0kVA
Air Consumption
0.5 ~ 0.7MPa (5 ~ 7kgf/cm²)
350Nℓ /min
50Nℓ /min
Weight (Kg)
± 1,820kg
External Dimension(mm)
1,650(L) x 1,690(D) x 1,485(H)
Hanwha SM471 Plus Pick and Place Machine Details:
Highly reliable SM471 PLUS is the 8th generation of Full Vision mounter from Hanwha and 6th Generation Dual Gantry System developed.
Cost of ownership is extremely low due to the simple yet reliable Dual Gantry X/Y/Z structure.
Easy to use software allows users to quckly learn the machine and get the most from it. Standard component library has more than 1800 shapes and the polygonic algorithm automatically detects component outlines on difficult components.
Features:
- Fast Electric Feeders which automatically adjust their pocket positions for ultimate synchronised picking
- Front and back operation as standard
- Large PCB Size of 510mm x 460mm as standard with optional up to 610mm
- 01005 component recognition as standard
- 120 x 8mm Feeder Capacity
- High Accuracy ±30µ@3σ/QFP, ±40µ@3σ/Chip
- Small Footprint of just 1650mm x 1690mm x 1535mm
- 5KVA Max Power

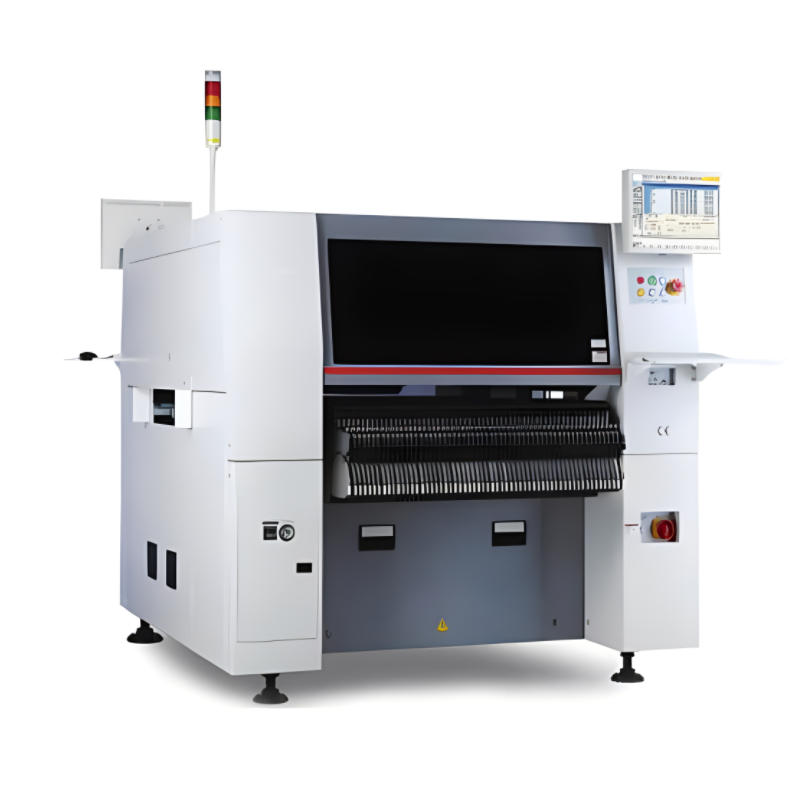

Hanwha SM471 Plus Pick and Place Machine Picture Show:
EXHIBITION:
SMT LINE:
